Product Introduction:
HN-540 TDD_COFDM is our new mini pure digital wireless transmission equipment, the use of advanced processing technology and time division COFDM modulation technology, providing two-way encryption (support AES_256 encryption ) the integrity of the network data transmission channel, the perfect realization of real-time, anti multi-path, high-speed movement of data, voice, image transmission ! The product has the advantages of small volume, light weight, especially for application UAV system, high-speed railway, moving vehicles,and other complex environments.
Product features:
●Provide up to 12Mbps data stream, dynamic adaptive rate allocation technology
●Support transparent PTP&PMD network technology
●Support non line of sight ( NLOS ) ,high-speed mobile transmission
●Provide standard RS-232&RS-485 + RJ45
●Support high standard industrial applications
●Small volume, light weight, easy to carry, fin type aluminum chassis
●High definition OLED panel digital display, simple interface and easy to operation
Outline drawing:

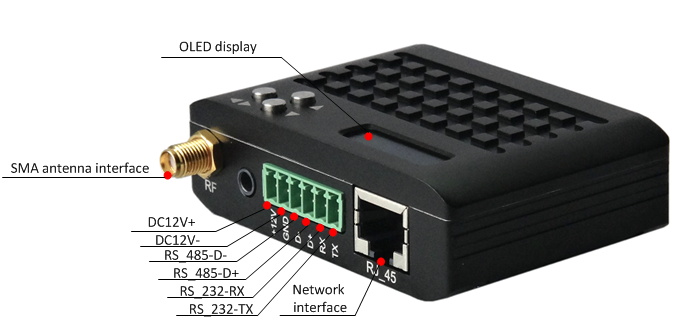

Interface description:
HN-540 Technical parameters:
| Model | HN-540 |
| DC input range | 7-17V DC |
| Power consumption | 6W |
| Ethernet | 10/100 BaseT,Auto-MDI/X,IEEE 802.3 |
| TCP,UDP,TCP/IP,TFTP,ARP,ICMP,DHCP,HTTP,SNMP,FTP,DNS | |
| RS-232 | 232 data transmission interface (or choose RS-485 interface) |
| RS-485 | 485 data transmission interface(or choose RS-232 interface) |
| Radio frequency | 2405-2477MHz,Stepping 1MHz (other frequencies on request) |
| Output power | 30dBm |
| Bandwidth | 4MHz/8MHz |
| Encryption | 128 bit AES(or choose 256 bit AES) |
| Correction mechanism | 32 bit of CRC,ARQ |
| Modulation | TDD_COFDM,Time division duplex mode |
| Parameter control | Adjust the parameters by OLCD control panel |
| Temperature range | -40℃ ~ 85℃ |
| Dimensions | 66mm*51mm*22mm |
| Weight | 112g |
|
|
